Product introduction
Material in the single acting hydraulic ram for dump truck very important,
DALLAST single acting hydraulic ram material: 27simn material with high tensile strength and high yield strength. Compared with ST52/ST52-3 steel, the tensile strength is increased by 59% and the yield strength is increased by 72%. It can meet the needs of users in various environments. Demand
Seal: Anti-fatigue polyurethane and Teflon seals
temperature: -30 to +100 0.5m/s
Cylinder surface treatment: Hard chrome plating thickness 0.02-0.04um Hardness: HV>750
Hydraulic cylinder execution standard
Technical implementation standards: JB/T10205-2010 Test method standard: GB/T15622
Bore Diameter | 2'-60'/50-1500mm |
Rod Diameter | 1' - 60'/25 -1500 mm |
Wall Thickness | 0.1'-4'/3-100 mm |
Max Stroke | 366'/9280 mm |
Max Pressure | 250 bar |
Test Pressure | 300 bar |
Material | 45#, 16Mn, 27SiMn,ST52/E355/E460 etc |
Seal Kits | Hallite, Parker, NOK, SKF, DICHTOMATIK, Trelleborg, Merkel, etc |
Dimensional Accuracy | H7-H11 |
Bore Roughness | Ra 0.4um |
Coating | hard chrome |
Purpose | Construction, metallurgical, mining, agricultural, forestry machinery, etc |
OEM | Yes |
MOQ | 1 Piece |
Certificates | ISO9001, ISO/TS16949,ABS,AQA,API,CCS,CCRI,DNV |
Prodection Details
Model Description
① Level 4 stage
② Unit code
③ Pressure E: 160Bar /F210Bar
④ First stage size (mm)
⑤ Stroke (mm)
FC Type Hydraulic Cylinder | |||||
MODEL NO. | Stage | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
(mm) | (mm) | (mm) | (mm) | ||
FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
FC-3-110-3460 | 3 | 110 | 3460 | 168 | 343 |
FC-3-129-2980 | 3 | 129 | 2980 | 218 | 343 |
FC-3-129-3205 | 3 | 129 | 3205 | 218 | 343 |
FC-3-129-3460 | 3 | 129 | 3460 | 218 | 343 |
FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
FC-4-149-3680 | 4 | 149 | 3680 | 218 | 343 |
FC-4-149-3980 | 4 | 149 | 3980 | 218 | 343 |
FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |

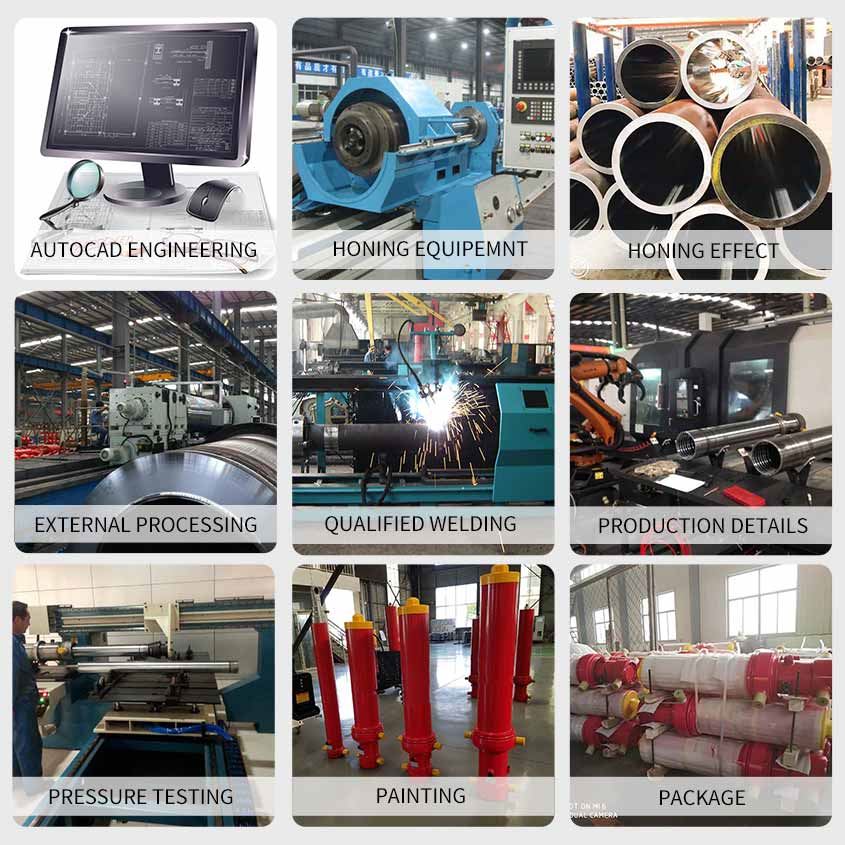

Production process
Company Office
Packing and shipment
Our Business Terms
1. Payment term: 50% deposit by T/T, balance before shipment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-15 days.
4. Shipping terms: FOB Shenzhen/Qingdao/Shanghai port, C&F Shenzhen/Qingdao/Shanghai port.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together
7.DALLAST provides hydraulic system operation and maintenance manuals and guidance
FAQ
Chile customers consulted with us about Single Acting Hydraulic Ram for Dump Truck
Q: why the hydraulic cylinder do quenching and tempering ?
A: The purpose of quenching and tempering treatment is to make the piston rod have comprehensive mechanical properties with good matching of strength, hardness, plasticity and toughness. The internal structure is uniform and fine tempered sorbate, which is ready for subsequent surface quenching.
Q: What is the material of the cylinder support ring?
A: Generally, it is PTFE-doped copper powder or poly oxy methylene. There are also copper sleeves, nylons, and resins.
Q: Can you do the design of package for us ?
A: Yes, We can. after tell us your idea. and we would make the files of your package according your requirement.
Q: Can you give me a discount price?
A: It is depending on the quantity. The larger the quantity is, the more discount you can enjoy.
More about single acting hydraulic ram for dump truck detail, you can send us email or call our sales department.
