Under Lift Rollback Recovery Rescue Block Cars Tow Truck, 5 Ton 6 Ton 8 Ton Wrecker Tow ...

All our flatbed tow truck hydraulic lift cylinders are manufactured with high quality seals to ensure cylinder compatibility, reliability, safety, and less downtime. flatbed tow truck hydraulic lift cylinder is important part of wrecker tow truck, raises and lowers the vehicle when they work. When the car is breakdown on the road, an accident is happened, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded.

Due to improper operation during use may cause damage to the lift cylinder. So hard chrome-plated rods to prevent rust and corrosion.

DALLAST has solutions to your common or unusual hydraulic lift cylinder demands. If you with lift cylinder issues please contact us.

Dallast designs and builds welded hydraulic lift cylinders for flatbed
tow trucks,rollback carriers and recovery vehicles.Send yourspecifications or existing cylinder details fora drawing review and quote.

Send Specifications for a Quote



Hydraulic Lift Cylinder Application



Custom-built for flatbed tow trucks, rollback carriers, recovery vehicles and wrecker equipment.

A tow truck hydraulic cylinder cannot be selected by bore and stroke alone. The retracted length, extended length, pin diameter, mounting width, port position, operating pressure and available installation space must also match the equipment.

Before quotation, we review the complete cylinder configuration and compare the supplied dimensions with the application requirements. This helps reduce installation problems, incorrect port orientation and unnecessary modification during assembly.

lifting cylinder hydraulic​



Customization Options



Each flatbed tow truck hydraulic lift cylinder can be configured around the customer's equipment, operating pressure, installation space and service environment.

Dimensions

The bore, rod diameter, stroke, retracted length and extended length can be manufactured according to the required lifting force, platform movement and installation envelope.



Mounting

Clevis, pin-eye, trunnion and customer-specific mounting arrangements can be evaluated according to the equipment structure.



Pin diameter, mounting width, alignment and available articulation should be confirmed to reduce side loading and installation stress.



Hydraulic Ports

BSP, NPT, SAE and metric port options can be reviewed according to the hydraulic system and local fitting standards.



Port size, location and orientation are confirmed on the drawing to help avoid interference with the truck frame, hoses or moving components.



Seal Options

Seal materials are selected according to the hydraulic fluid, working pressure, operating temperature, duty cycle and service environment.



Available options may include NBR, polyurethane, FKM/Viton and low-temperature sealing materials, subject to engineering confirmation.



Surface Protection

Available surface-protection options may include industrial paint, zinc plating, hard chrome plating and other customer-specified finishes.



The recommended finish depends on exposure to rain, road salt, dust, moisture and other corrosive operating conditions.



Product Features

>Professional manufacturer& supplier of Hydraulic Cylinders;

>Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;

>Experience in export North America, Australia, Asia, Middle East, Africa;

>Hydraulic Cylinders can be Make according to client's requirements;

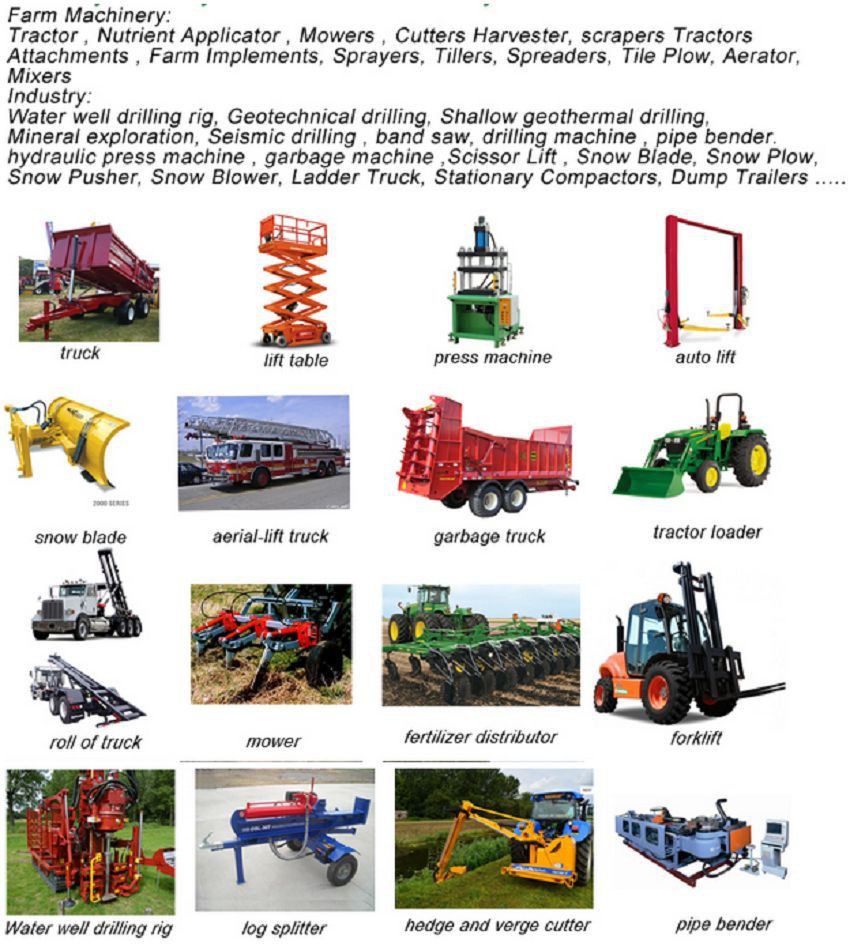

>Hydraulic Cylinders can be used for wrecker tow truck, recovery truck, wrecker towing truck, flatbed tow trucks, car carrier towing truck, road recovery vehicle, rotator wrecker rollback tow truck, flatbed towing truck;

>Most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.

Dimensional Inspection

Critical dimensions are checked against the approved drawing.Inspection points may include rod diameter, stroke, retracted length, mounting width, pin holes and hydraulic port location. Customer-designated critical dimensions should be identified before production.

Pressure And Leakage Test

Each completed cylinder is connected to a hydraulic test system and checked for pressure resistance, external leakage and movement throughout the required stroke.

The test conditions are selected according to the approved design and agreed inspection requirements.


Protective Packaging

Hydraulic ports are capped to reduce contamination during transportation.

Exposed metal surfaces receive suitable anti-rust protection, and the cylinder is secured to reduce movement and impact inside the package.

Plywood cases, pallets or other export packaging can be selected according to cylinder size, quantity and shipping method.

Q1: Could you offer customized products?

A: Yes. Of course. We have professional group to design according to your requests.

Q2: Are you a manufacture?

A: We are the leader manufacturer of hydraulic industry in China with experience and technology. With strong technical team we could solve any issues of you.

Q3: Do you have quality control system?

A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

Q4: Do your products come with a warranty?

A: Yes, we have 12 months warranty. Under warranty period, if the quality problems we will free repair or replace new one for you.

Q5: What is your maximum bore, stroke and pressure capability?

A: The available bore, stroke and working-pressure range depends on the cylinder structure, mounting arrangement, materials, rod stability, production process and required safety margin.Instead of selecting a cylinder only from a general maximum value, send us the required lifting force, system pressure, installation space and operating conditions. We will evaluate whether the requested design is suitable for production.

Q6: What is the delivery time?

A: 15-30 days, which is depend on order quantities, production process and so on.

Q7: What seal options do you offer?

A: Seal selection depends on the hydraulic fluid, pressure, temperature, operating frequency and environmental conditions.Possible materials include NBR, polyurethane, FKM/Viton and low-temperature compounds. The final seal configuration is confirmed during the engineering review.

Send Your Specifications
for an Engineering Review

Our engineering team will review your details,createa
3D drawing forconfimation,andprovide a competitive
quoteandleadtime.
