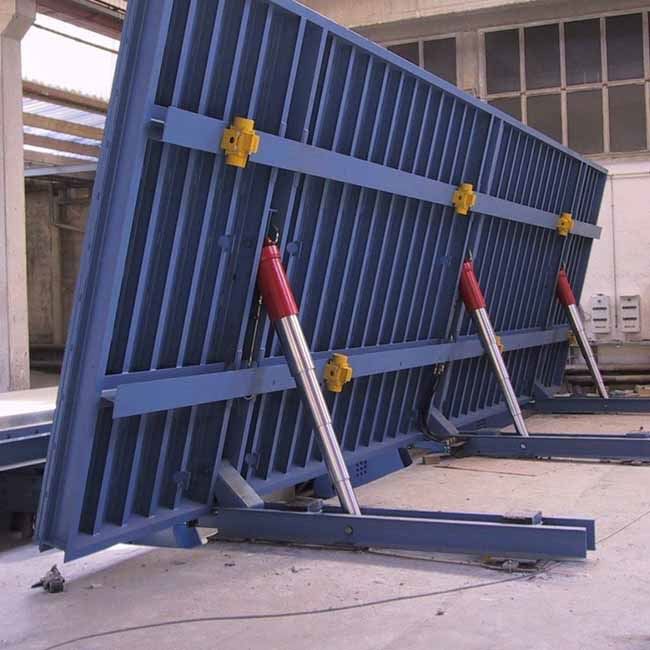

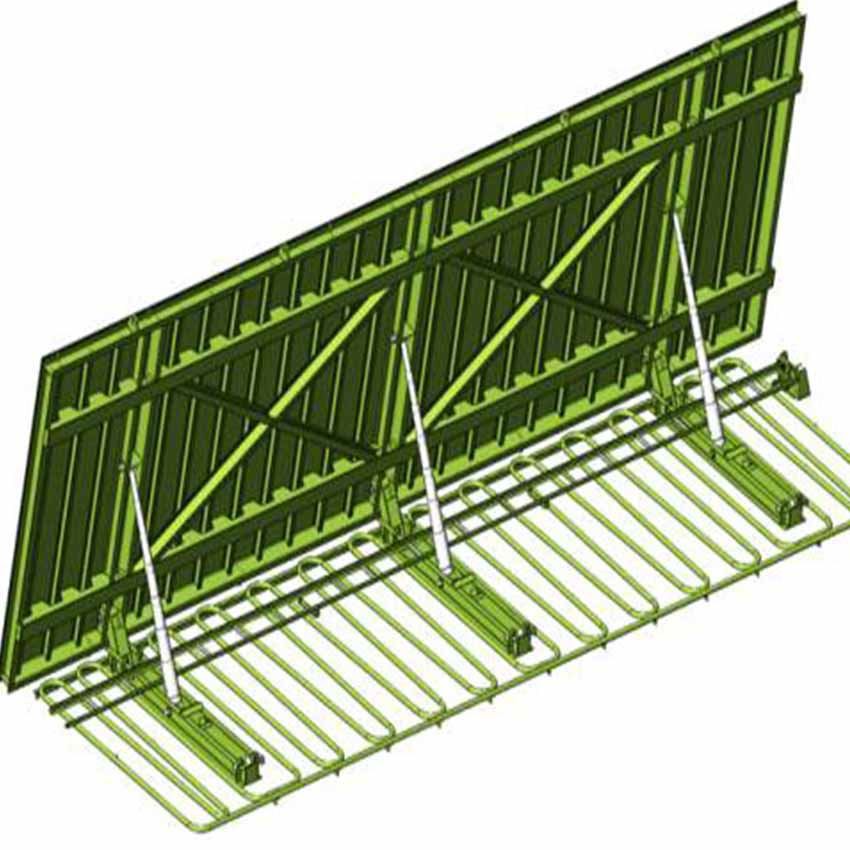

Tilting Table with telescopic hydraulic cylinder
Customised tilting tables with telescopic hydraulic cylinder allow the horizontal production of walls, facades and special elements. Tilting Table with telescopic hydraulic cylinder have premium-quality mould faces and high-frequency vibrators for perfect concrete compaction. The individual side rails can be customised. users produce premium-quality precast concrete parts with our tilting tables, which can be set upright to about 80 degrees with integrated tilting hydraulics or with a tilting mechanism in conjunction with the overhead crane to facilitate demoulding.
We provide a complete solution（hydraulic system part , pannel part you can customize the size you want
Tilting Table with telescopic hydraulic cylinder Features
1.Widths 2.5 – 5 m and lengths of 6 – 100 m at a load per unit area of 500 – 1,000 kg/m²
Hydraulic tilting block as standard up to a tilting angle of 83°, optional mechanism with overhead crane and a hauling Support
2. Tilting table separable for dispatching in 40' containers
Design with high quality flat steel panels or as a mould grid, for example for ply-wood cover and cleaning-, milling- and polishing tables
3. Design with fixed or freely adjustable side rail of 120 – 350 mm (with extension up to a height of 500 mm) or ply-wood frames with height adjustable steel substructure
4. Heating register can be integrated in the top structure for local supply with hot water, steam or thermo-oil; alternative design with electrical heating possible; thermal insulation can be integrated
