Hydraulic cylinder mounts have Rod Clevis Hydraulic Cylinder; Cross Tube Cylinder; Double Ended Cylinder; Flange Mount Hydraulic Cylinder; Pin Eye Hydraulic Cylinder; Tang Hydraulic Cylinder; Trunnion Mount Cylinder
Styles
●Welded
●Double rod (steering)
●Single/double acting
●Displacement
●Rephasing
Mounting Options
●Rod Clevis
Sizes
●Bore sizes 1.5" to 40"
●stroke length: 1” to 200”
●Operating pressures up to 3500 PSI
Two solutions for cylinder tube processing: A and B
A Preparation (seamless steel pipe) → inspection (material certificate, etc.) → quenching and tempering (some parts) → lathe machining (lathe machining of outer circle, frame opening, boring stop, flange stop, etc.) → tempering hardness test → Welding (welding pipe joint seats, flanges and other accessories) → Boring or honing (coarse boring, fine boring, rolling) → Lathe processing (hole slot or internal and external thread) → fitter (drilling port) → inspection → anti-proof Rust storage
B Preparation (forging) → inspection (material certificate, flaw detection, etc.) → welding (roughing butt welding) → welding flaw detection → lathe machining (rough machining) → tempering (outsourcing: some parts) → lathe machining (lathe machining outer circle) , Frame mouth, boring stop, flange stop, etc.) → Hardening and tempering test → welding (welding pipe joint seat, flange and other accessories) → boring or honing (coarse boring, fine boring, rolling) → lathe processing (Hole card slot or internal and external thread) → fitter (drilling oil port) → inspection → anti-rust storage
Believe that our professional Rod Clevis Hydraulic Cylinder can provide more reliable products
Product Introduction

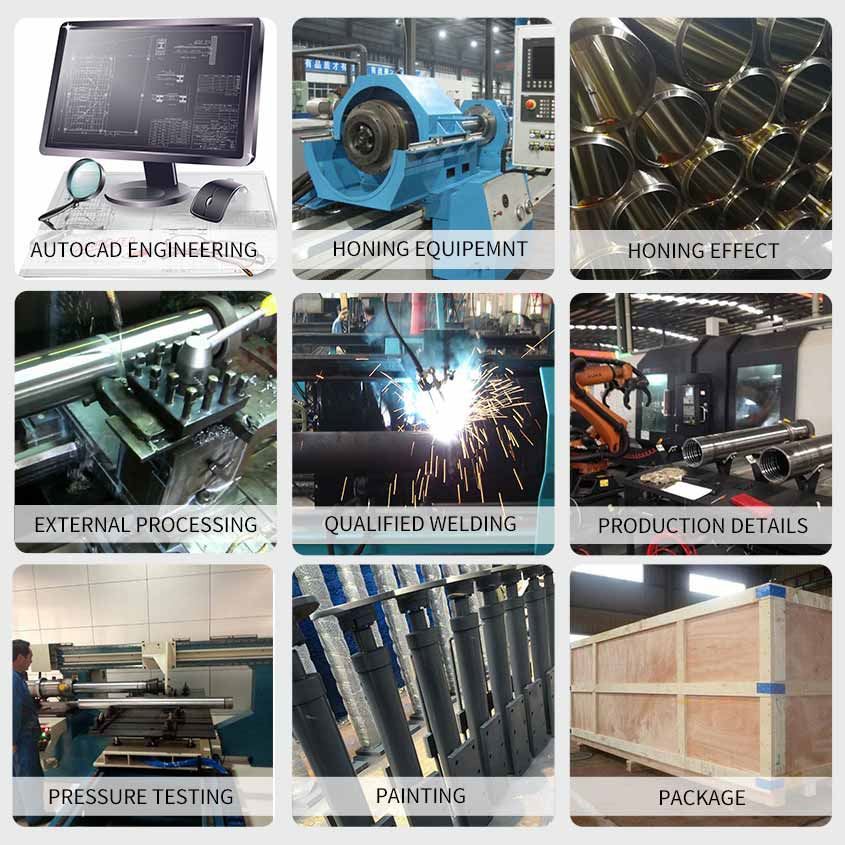

Production detail
Product Process
Company Office
Deliver, shipping and serving
FAQ
Greek customers consulted with us about Rod Clevis Hydraulic Cylinder
Q: What is the rated pressure of the general cylinder?
A: This depends on the model of the cylinder.
1. Pull rod cylinder 7MPa, 14MPa.
2. The rated pressure of the engineering cylinder is 16MPa.
3. Rexroth metallurgical cylinder rated pressure 250MPa.
Q: Where is the hydraulic cylinder exhaust valve?
A: There is a venting hole next to the oil inlet pipe at the top of the cylinder. During the pressing process, the exhaust valve is opened, and the hydraulic oil flows out slowly, which completes the exhausting action, and then closes the exhaust valve; it can also move back and forth several times under no-load conditions.
It is also possible to squeeze the air in the hydraulic chamber into the hydraulic tank.
Q: How to ensure the concentricity of the upper and lower cylinders?
A: The positioning of the nozzle is used to ensure the precision of the machining, but the concentricity is within the tolerance range.
We not only product Rod Clevis Hydraulic Cylinder ,we also design and product other mount hydraulic cylinder ,about Hydraulic cylinder mounts more information ,please send us email , Our professional technicians will serve you.
