Gannon Box Blade Hydraulic Cylinder
Custom & Replacement Hydraulic Cylinders for Box Blade Applications
DALLAST manufactures custom and replacement hydraulic cylinders for Gannon box blades, box scrapers, grading attachments, and agricultural equipment.
Whether you need a direct-fit replacement for a worn or damaged cylinder, or an OEM manufacturing partner for custom box blade attachments, we build exactly to your technical drawings, physical samples, or specified mounting dimensions.
Hydraulic Cylinders Engineered for Box Blade & Scraper Attachments

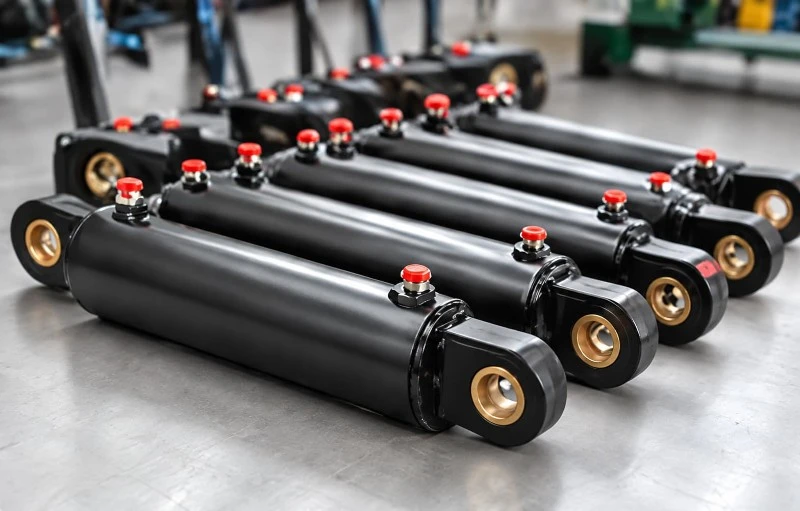

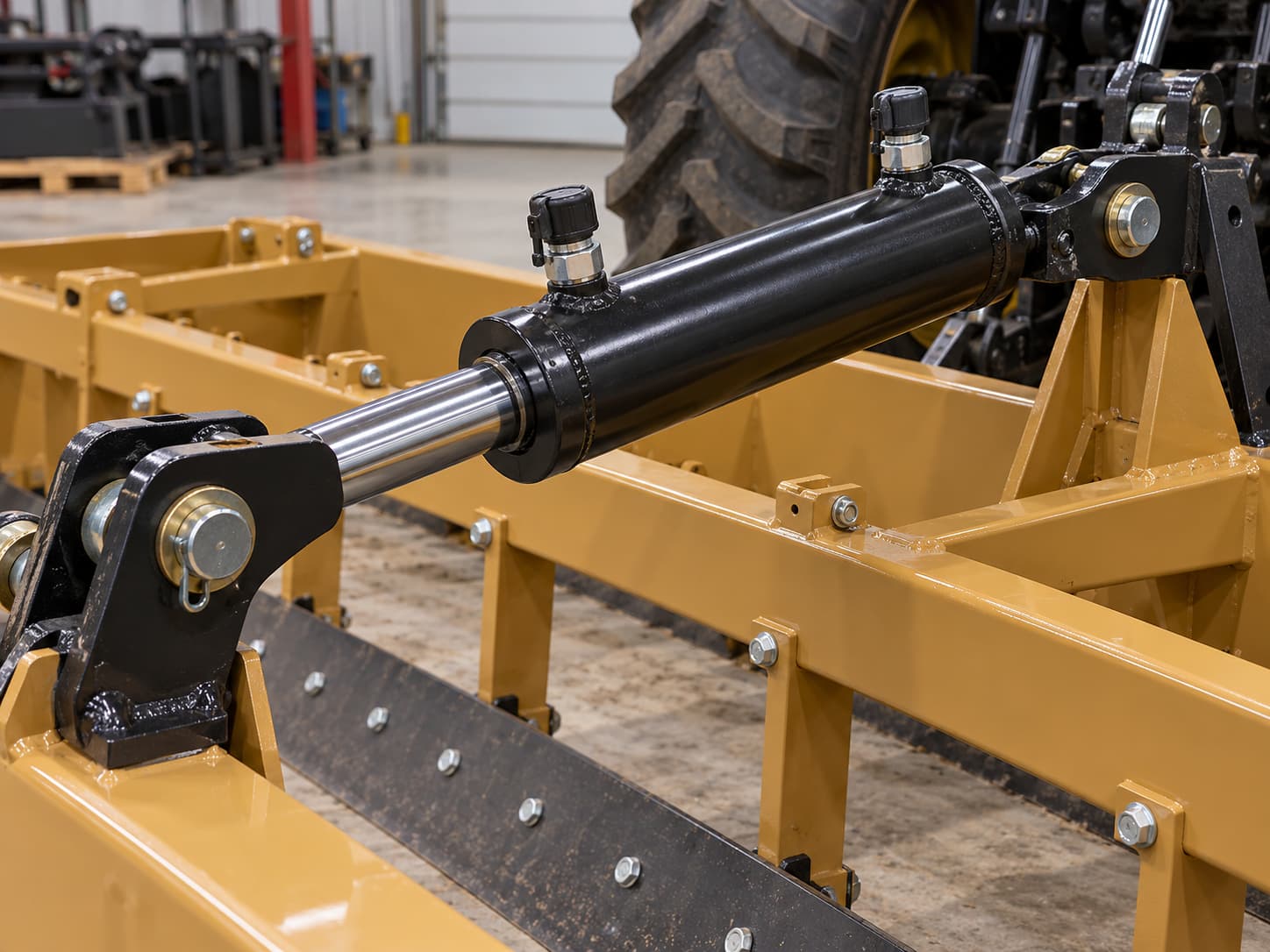

A box blade hydraulic cylinder governs the continuous depth control, tilt, and angle positioning of the cutting edge during grading, soil conditioning, scarifying, leveling, and earthmoving.In replacement scenarios, dimensional interchangeability is non-negotiable. A variation in pin center-to-center distance, rod diameter, or pin diameter can lead to mechanical binding, misaligned blade geometry, or immediate seal failure under load.
DALLAST manufactures cylinders based on physical cylinder samples, CAD/technical drawings, or your field measurements-delivering an exact match for aftermarket repair, distributor inventories, and OEM equipment lines.
We have more than one-decade experience in supplying custom Gannon Box Blade Hydraulic Cylinder with provided drawings or samples, or if you could provide following specification：
• Diameter of bore & rod
• Stroke
• Mounting style
• Mounting distance
• Working pressure : E(160BAR)/ F (210BAR)
• Ports size
• Seals
• Special modifications
• Mounting distance
• Working pressure : E(160BAR)/ F (210BAR)
• Ports size
• Seals
• Special modifications
Product detail
Characteristics
- Larger diameter, more lifting capacity.
- Max working pressure reaches 250 bar, better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability.
- New model guide ring combined with lubricating material, guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support longer working life.
- Integrated design, easy to maintain.
-100% tested, guarantee high quality.
Custom Gannon Box Blade Hydraulic Cylinder Specifications
| Specification | Standard / Custom Options |
|---|---|
| Bore Diameter | Custom-bored according to required push/pull tonnage and equipment envelope |
| Rod Diameter | High-strength carbon steel, hard chrome plated; sized for buckling resistance |
| Stroke | Built to application requirements to match specific blade travel geometry |
| Retracted Pin-to-Pin Length | Machined precisely to ensure full blade retraction and proper transport clearance |
| Extended Pin-to-Pin Length | Calculated based on stroke and mounting envelope for full digging depth |
| Rated Working Pressure | Standard options: 160 bar (2320 psi) / 210 bar (3045 psi) |
| Maximum System Pressure | Up to 250 bar (3625 psi) for applicable designs |
| Mounting End Styles | Welded clevis, spherical pin eye, cross tube, or custom forged/cast ends |
| Pin Diameter & Bushings | Custom machined to exact pin size; hardened bushings available |
| Port Types & Sizes | SAE O-ring boss (ORB), NPT, BSPP, or custom dual-port orientations |
| Hydraulic Seals | Premium polyurethane (PU) and nitrile (NBR) seal packages with anti-dust scrapers |
| Surface Finish | Anti-corrosion industrial primer + single/two-pack polyurethane topcoat |
How to Measure Your Box Blade Cylinder for Replacement
Essential Parameters to Provide
Piston Rod Diameter (Dim B)
Measured on the polished chrome rod using a caliper.
Stroke Length (Dim C)
The total linear distance the rod travels from fully closed to fully open.
Retracted Length (Dim D)
Distance from pin center to pin center with the rod fully retracted.
Mounting Interface (Dims F & G):
Pin diameter and the inside gap of the clevis or outer width of the pin eye.
Operating Pressure & Thread (Dim H)
Operating pressure of your tractor hydraulic circuit (e.g., 2,500 psi / 170 bar) and port thread standard.
Not sure how to measure your existing cylinder? Read our guide on how to measure hydraulic cylinder dimensions before requesting a replacement.
Built for Heavy Agricultural & Earthmoving Shock Loads
Box blades frequently encounter hidden tree roots, buried boulders, compacted clay, and sudden impact spikes that exceed normal operating loads. DALLAST box blade cylinders are engineered specifically to resist mechanical fatigue and hydraulic shock:
High-Tensile Honed Tubing: Precision-finished cold-drawn or DOM (Drawn-Over-Mandrel) steel tubing ensures seal longevity and prevents wall ballooning under instantaneous pressure surges.
Hard Chrome Plated Piston Rods: Induction-hardened and micro-finish chrome plated to prevent surface pitting, scratching from agricultural dust, and rod buckling under heavy compression loads.
Heavy-Duty Rod Wipers & Seals: Heavy-duty polyurethane exclusion wipers keep out abrasive grit, soil, mud, and water, protecting internal buffer rings and rod seals from contamination.
Reinforced Welded Construction: Deep-penetration automated welds on base caps and mounting clevises eliminate fatigue cracking caused by persistent implement vibration.
Quality Inspection & Pressure Testing Protocol
A dimensional match is meaningless if the cylinder fails under hydraulic load. Every individual cylinder manufactured by DALLAST undergoes strict testing prior to packing:
Dimensional Verification
Precision CMM and caliper checks verify pin-to-pin retracted length, pin hole clearances, and port alignments against the approved engineering drawing.
01
Full-Stroke Cycle Testing
Verification of smooth linear travel, checking for rod binding, concentricity errors, or abnormal internal friction.
02
Hydrostatic Pressure & Internal Bypass Test
Pressurized up to test standards (1.5x working pressure) to ensure zero internal piston bypass across seals.
03
External Leakage Inspection
Static hold under continuous pressure to verify rod seal integrity and zero port/weld porosity.
04
Anti-Corrosion Surface Finish Check
Paint adhesion and thickness verification to withstand outdoor agricultural storage and chemical exposure.
05
Hydraulic Cylinder Quality Control
Raw Material Inspection
1
>>
Machining Inspection
2
>>
Welding Inspection
3
>>
Seal & Assembly Inspection
4
>>
Stroke, Pressure & Leakage Testing
5
>>
Dimension & Final Inspection
6
Hydraulic Cylinders for Box Blade & Scraper Applications
Gannon Box Blades
Custom and replacement hydraulic cylinders for Gannon box blades used in grading, leveling, backfilling, and ground preparation. Cylinders are manufactured to match your original stroke, pin-to-pin center distance, mounting dimensions, pin diameter, and hydraulic port connections.
Hydraulic Box Scrapers
Hydraulic cylinders for box scrapers provide precise control over blade elevation, cutting-edge angle, and scraper positioning during material spreading and surface leveling. Custom bore sizes, rod diameters, strokes, mounting styles, and port orientations are configured to match specific scraper designs.
Tractor Grading Attachments
Hydraulic cylinders for tractor-mounted grading attachments ensure smooth, controlled adjustment of working depth and grading pitch. Both replacement and OEM cylinders can be manufactured to equipment engineering drawings or field measurements.
Land Leveling Equipment
Custom hydraulic cylinders for heavy land levelers and grading machinery are built to endure repeated cycling and shock loads during rough ground preparation. Cylinder specifications are tailored to your required stroke, working pressure, push/pull tonnage, and installation envelope.
Agricultural Implements
We engineer and manufacture hydraulic cylinders for diverse agricultural implements requiring lifting, positioning, tilting, or continuous adjustment. Custom mounting ends, extended strokes, hydraulic ports, and seal packages are available for both OEM production runs and aftermarket replacement.
Landscaping Equipment
Hydraulic cylinders for landscape and site-maintenance attachments are built for rigorous grading, soil conditioning, material handling, and final surface finishing. We manufacture directly from CAD drawings, equipment mounting dimensions, measured cylinder data, or physical samples.
FAQ
FAQ
Q: Can you manufacture a replacement Gannon box blade hydraulic cylinder?
A: Yes. We can evaluate replacement production based on the existing cylinder dimensions, drawings, photographs, or physical samples.
Q: What dimensions do you need?
A: Yes. Custom hydraulic cylinders can be manufactured according to customer drawings and technical requirements.
Q: Can you manufacture according to my drawing?
A: Yes. Custom hydraulic cylinders can be manufactured according to customer drawings and technical requirements.
Q: Can you customize the mounting dimensions?
A: Yes. Mounting style, pin diameter, mounting width, pin-to-pin distance, and connection dimensions can be customized.
Q: Can you manufacture cylinders for other agricultural attachments?
A: Yes. Custom hydraulic cylinders can also be developed for tractors, graders, scrapers, trailers, harvesting equipment, and other agricultural machinery.
Q: The hydraulic cylinder has a sound and slowly withdraws. What is the reason?
A: The reversing valve is not closed tightly, and there is a sound in the cylinder.
Q: Is there cheap shipping cost to import to our country?
A: For small order, express will be best, for bulk order, sea ship way is best but take much time. For urgent orders, we suggest by express, big quantity by air.
Q: What are our after-Sales Services?
A: a)We are willing to improve the quality of the products if there is any problem with your order.
b)Repairs are free of charge if the problem is due to manufacturing defects.
c)We are willing to comply with customers' reasonable requests.
Request a Quote for Your Box Blade Hydraulic Cylinder
Send your cylinder dimensions, drawing, photos, working pressure, and required quantity. Our engineering team will review your specifications before quotation.
