Product Introduction
Multi Stage Hydraulic Cylinder for Semitrailer, This type hydraulic cylinder is a single acting multistage telescopic hydraulic cylinder.
Due to it's large stroke that can be used for heavy vehicles as a lift cylinder. In the entire hydraulic system, tipping valve can set the maximum working pressure of 190Bar; 200Bar; 210Bar; 220Bar. DALLAST hydraulic cylinder can withstand maximum working pressure of 220Bar, testing pressure at 280-300Bar. Our hydraulic cylinders have large lifting force, load capacity and stronger stability.
We use high strength materials 27SiMn with quenching and tempering treatment, its tensile strength and yield strength about 950MPA. Compared with other company it is more than 2 times.
Multi Stage Hydraulic Cylinder Feature:
| Model Type | FC,FE,FEE etc |
| Certificate | ISO9001&TS16949:2009 |
| Body Material | 27SiMn |
| Stage | 1-7 stages or As required |
| Pressure | 16Mpa-22Mpa |
| Total Stroke | 3000-9093MM |
| Surface Treatment | Chrome Plating |
| Service Range | Replacment Penta,Edbro,Hyva hydraulic cylinders |
| Vehical Body Length | 5000-12000 |
| Package | Shrink Film,Pallet,Plywood case and carton |
| Warranty | One year after shipping arrival |
| Payment Terms | T/T,West Union, MoneyGram, Paypal |
| Delivery Time | 15-35Days after down payment |

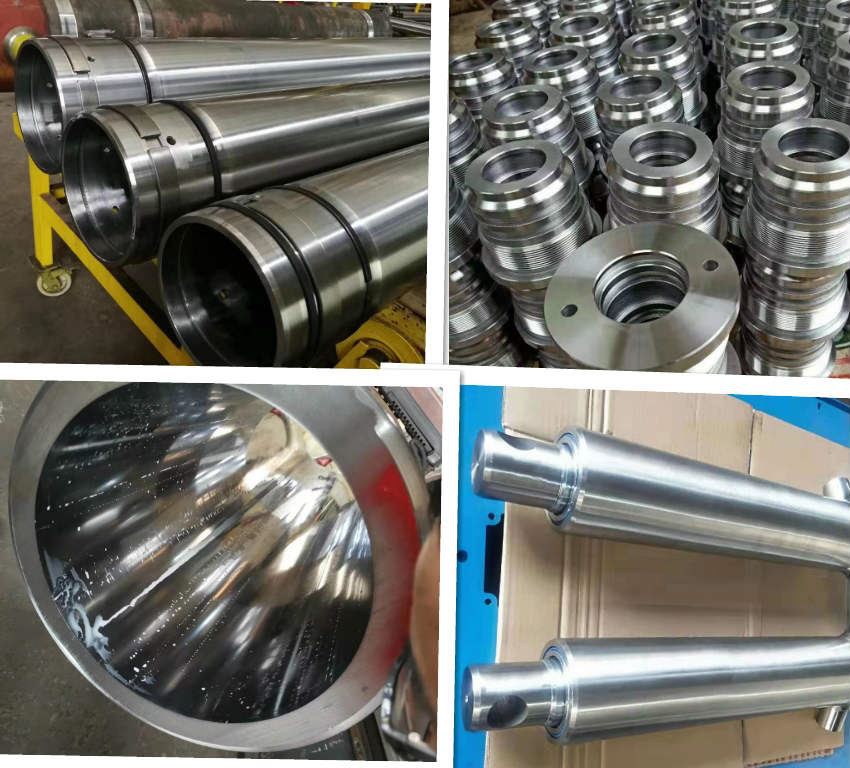

Product details
TG series Telescopic hydraulic cylinder
TG series of single-acting multi-stage telescopic hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
We provide multi stage hydraulic cylinders design service for semitrailer. Custom hydraulic cylinders according to customers technical parameters that provide:
