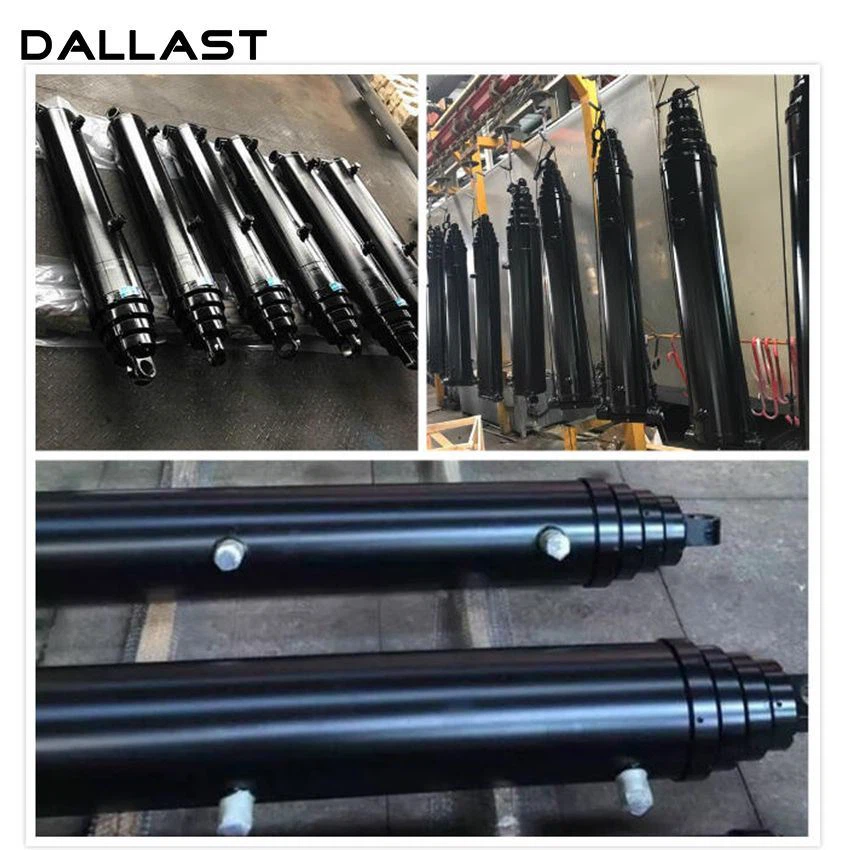

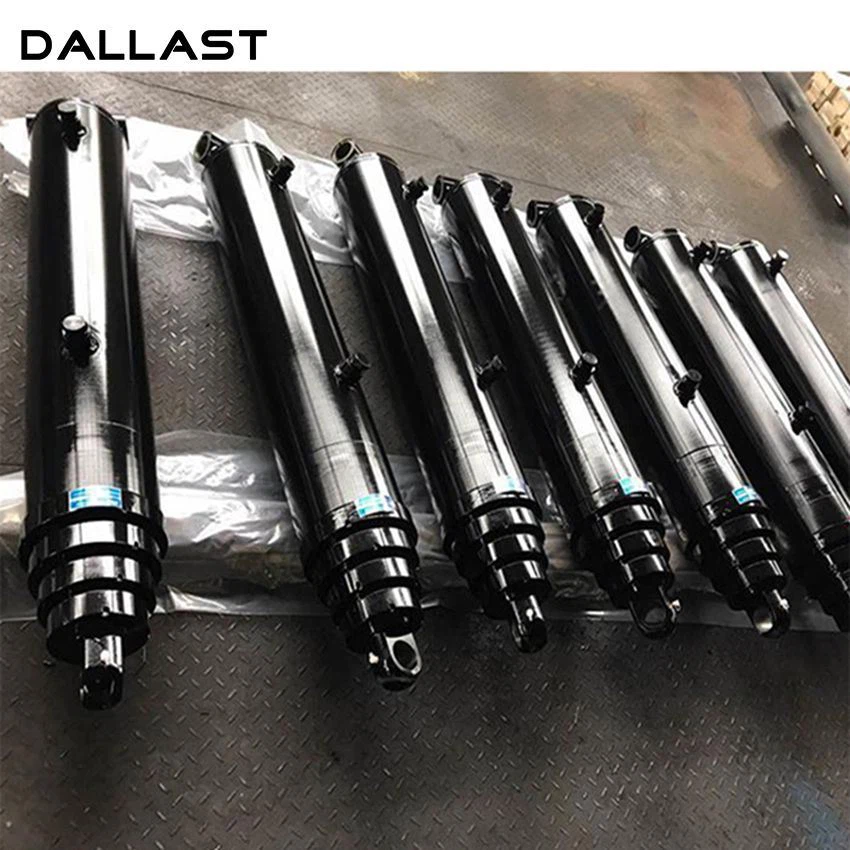

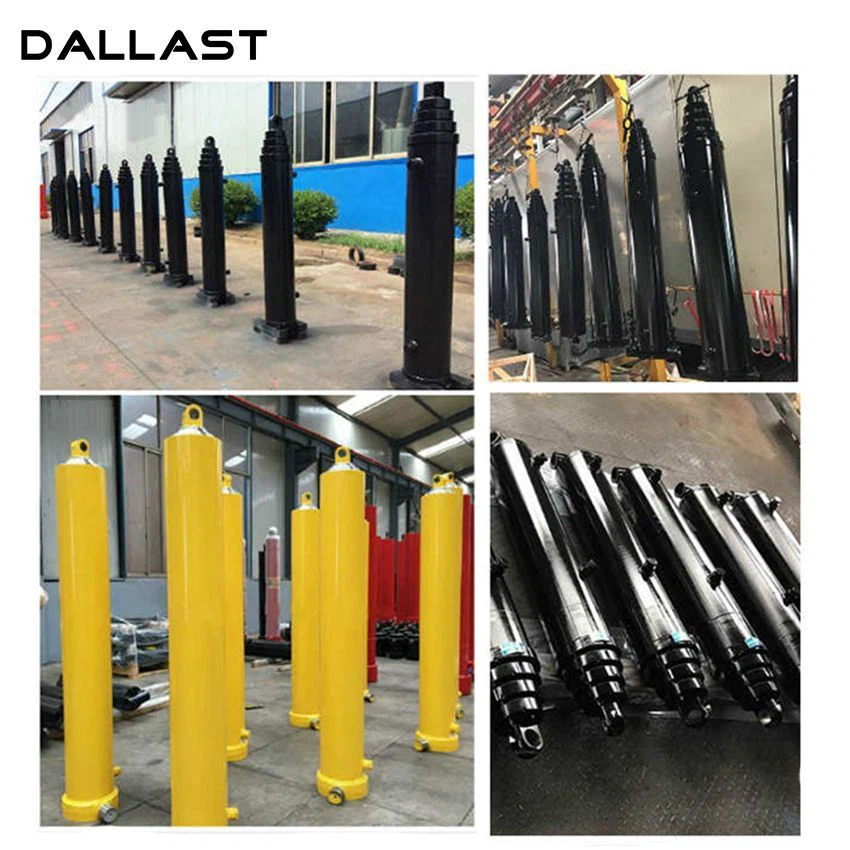

Replacement parker heavy duty hydraulic cylinder include S84DC series; S85DC series; S95DC series, those type series of replacement parker heavy duty hydraulic cylinder are single acting telescopic hydraulic cylinder, we also product double acting replacement parker heavy duty hydraulic cylinders.
27simn (GB/T17396-2009)
| Tensile strength (σb/MPa) ≥ 1050 | ST52-3 | Tensile strength (σb/MPa) ≥ 510 |
E355 | Tensile strength (σb/MPa) ≥ 490 |
Yield strength (σs/MPa): ≥ 950 | Yield strength (σs/MPa):≥ 355 | Yield strength (σs/MPa): ≥ 355 | |||
Area shrinkage (ψ/%): ≥45 |

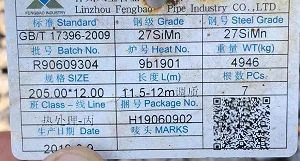

Our material certificate 27SIMN, with our material compared:
27SIMN Tensile strength and Yield strength compare with ST52-3 / E355

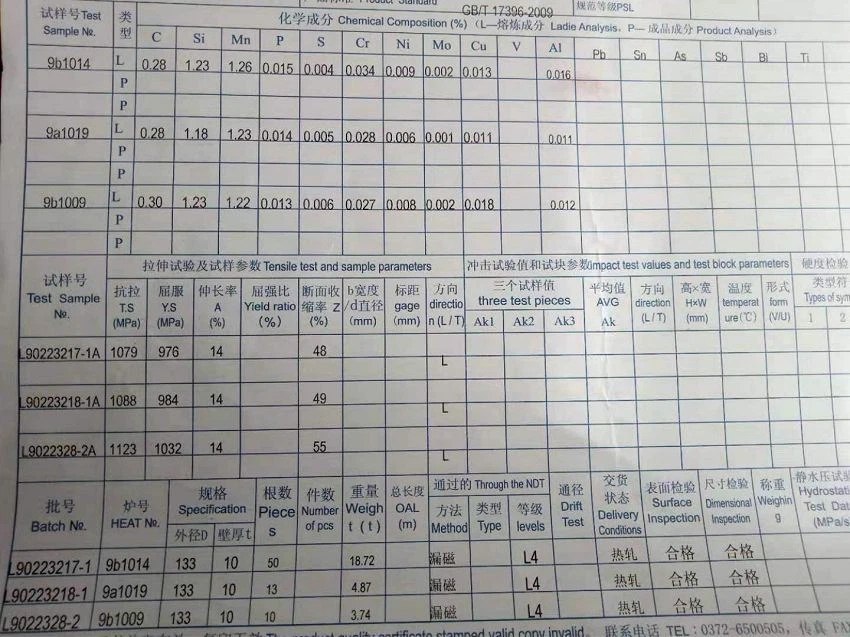

27SIMN material report
S84DC-66-148 | 4TG F8*148 | 8" | 4 | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
S84DC-66-156 | 4TG F8*156 | 8" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
S84DC-66-161 | 4TG F8*161 | 8" | 4 | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
S84DC-66-170 | 4TG F8*170 | 8" | 4 | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
S84DC-66-180 | 4TG F8*180 | 8" | 4 | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
S85DC-66-170 | 5TG F8*170 | 8" | 5 | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
S85DC-66-190 | 5TG F8*190 | 8" | 5 | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
S85DC-66-220 | 5TG F8*220 | 8" | 5 | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
S85DC-66-235 | 5TG F8*235 | 8" | 5 | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
S85DC-66-250 | 5TG F8*250 | 8" | 5 | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
S85DC-66-265 | 5TG F8*265 | 8" | 5 | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
S85DC-66-285 | 5TG F8*285 | 8" | 5 | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
S95DC-52-220 | 5TG F9*220 | 9" | 5 | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
S95DC-52-235 | 5TG F9*235 | 9" | 5 | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
S95DC-52-250 | 5TG F9*250 | 9" | 5 | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
S95DC-52-265 | 5TG F9*265 | 9" | 5 | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
S95DC-52-280 | 5TG F9*280 | 9" | 5 | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
S95DC-52-300 | 5TG F9*300 | 9" | 5 | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
S95DC-52-320 | 5TG F9*320 | 9" | 5 | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
S95DC-52-340 | 5TG F9*340 | 9" | 5 | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |
Believe that our professional Multi Stage Hydraulic Jack can provide more reliable products
Product Introduction

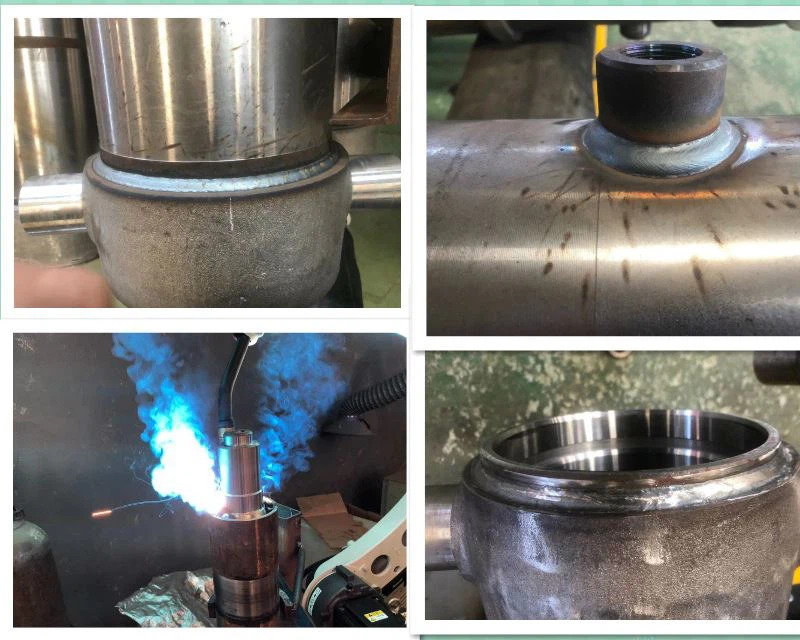

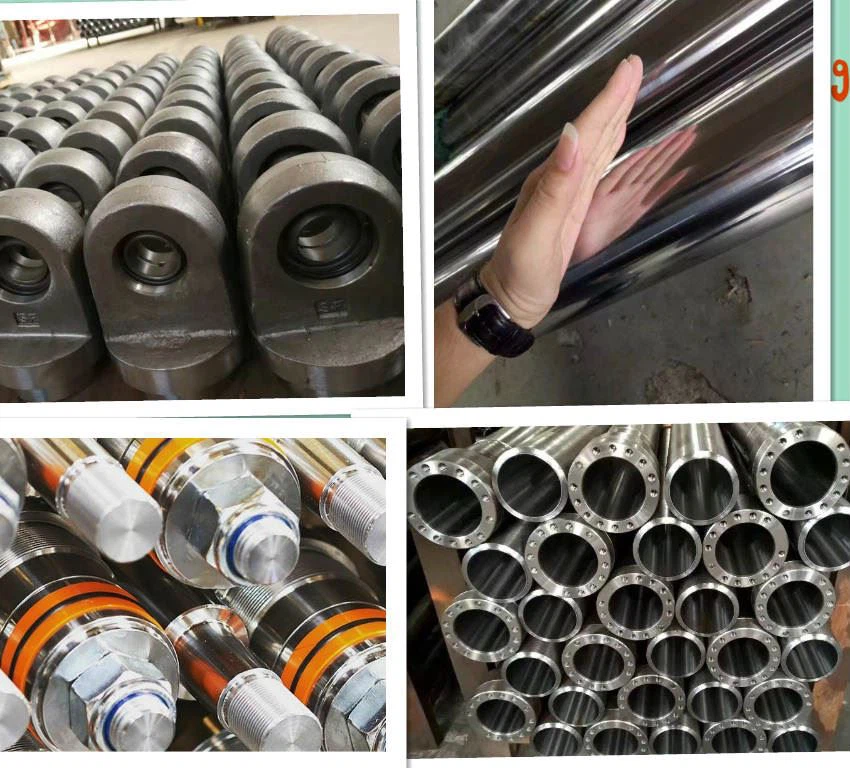

Production detail

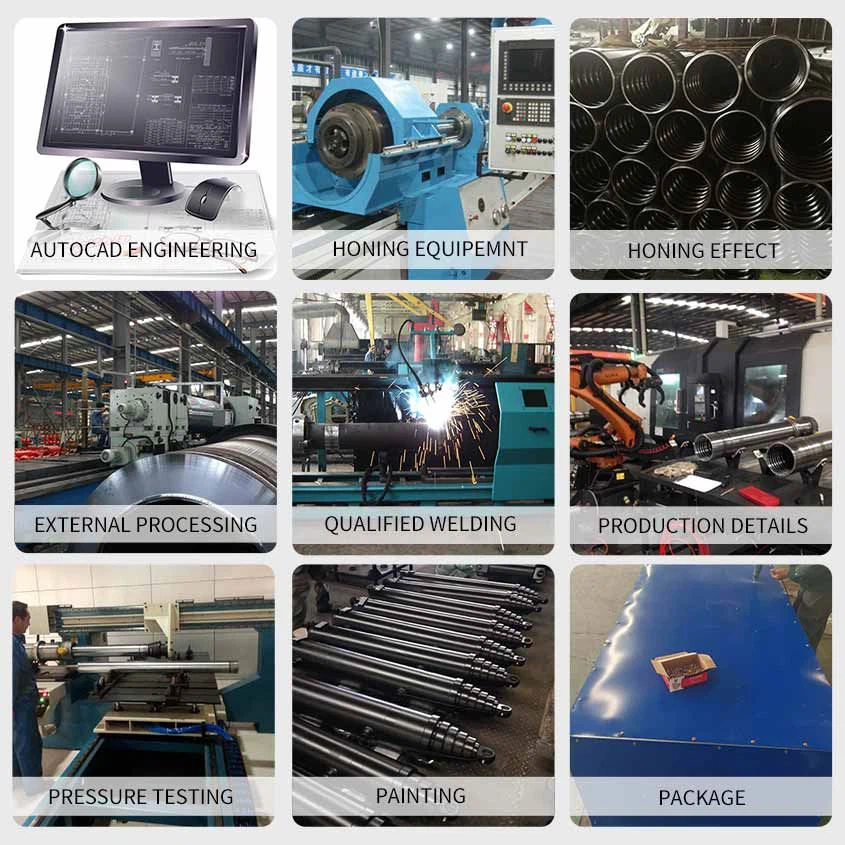

Product Process
Company Office
Deliver, shipping and serving
FAQ
USA customers consulted with us about Replacement parker heavy duty hydraulic cylinder
Q: The pressure of the hydraulic station is expressed to 20MP. How many tons can load capacity ,hydraulic cylinder bore size 125mm? How to convert? Please list. Thank you
Answer: 20Mpa=200kg/cm^2 The hydraulic cylinder with a cross-sectional area of 1cm2 can lift up to 200kg. Therefore, F=200X3.14X(125/2)^2=24531kg=24.5 tons
Q: When the cylinder testing, why can't it be held pressure whith the balance valve!
A: Because the oil in the oil inlet chamber is opened to the other side of the valve through the hydraulically controlled control oil circuit, the original valve is designed like this. It locks the circuit after the oil pressure is lost. On the contrary, if you keep supplying pressure, it is always in the state of opening the other check valve. Therefore, this valve cannot be used in the test.
Q: In the hydraulic system of dump truck, how to choose low pressure hydraulic oil hose and high pressure oil house?
A: Low pressure generally uses 1" 3/4 inner diameter,
High pressure depends on the TIPPER valve interface, which is generally 1", and also has 3/4". The high-pressure oil hose is relatively strong, and must be selected in the 4-layer steel mesh.
We not only product Replacement parker heavy duty hydraulic cylinder ,we also design and product two way hydraulic cylinder ,about dumper Truck Telescopic Hydraulic Cylinders more information ,please send us email , Our professional technicians will serve you.
